Custom Y-Teeth Zipper Wire (#3 #4 #5) – Stainless Steel, Brass & Composite Copper Profile Wire
Description

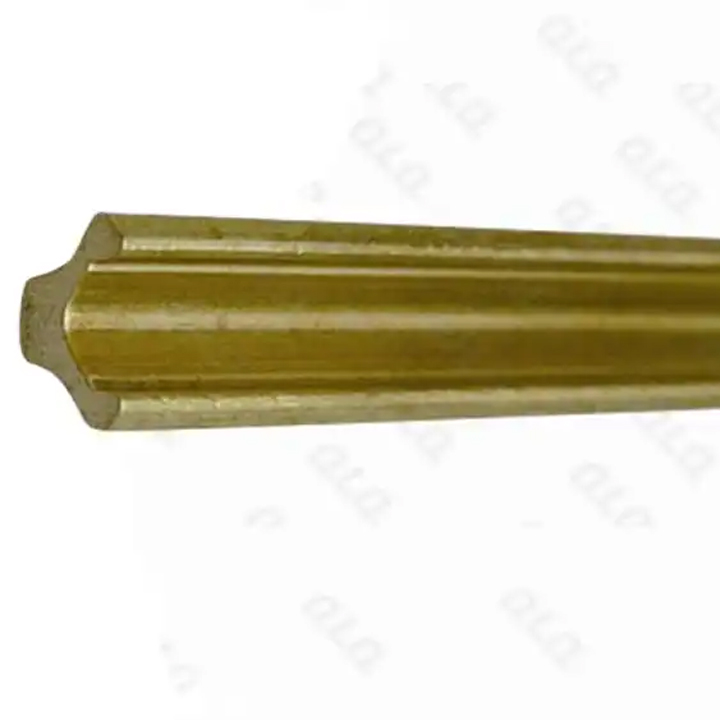

Precision Y-Teeth Zipper Wire (#3, #4, #5)
Engineered for High-Speed Zipper Stamping & Zero Jamming: Fullgreat Metal supplies preformed Y-teeth zipper wire engineered with tight cross-sectional tolerances (±0.01mm) to ensure flawless feeding in automated zipper teeth forming and intermeshing machines.
Developed in collaboration with Sichuan University, our proprietary FPD901/FPD902 non-magnetic stainless steel and FPD726 composite copper wires serve as high-strength, cost-effective alternatives to solid brass—delivering 100% compliance with 8-to-10 level garment needle detection while reducing material costs by 30%–40%.
- Raw Material Pairing: Sourced from our certified Non-Magnetic Stainless Steel Coils and Composite Copper Materials.
- Matching Stop Components: Explore matching Zipper Top & Bottom Stop Profile Wires.
- Technical Guide: Read our industry guide on Sourcing Non-Magnetic Stainless Steel for High-End Metal Zippers.
Engineering Specifications
| Product Name | Preformed Y-Teeth Profile Wire for Metal Zippers |
| Standard Tooth Sizes | #3, #4, #5, #8 (Standard commercial sizes; custom tooth profiles engineered per CAD/drawings) |
| Dimensional Tolerance | Cross-section width, tooth thickness, and groove depth held within ±0.01mm |
| Material Options | Austenitic Stainless Steel: SUS304, SUS316, and Non-Magnetic Grades FPD901 / FPD902 Brass Alloy: H65, H68 (CuZn35 / CuZn32) Bimetallic Composite: FPD726 Copper Clad Stainless Steel (Brass look with steel core strength) Aluminum Alloy: 5052, 5182 (Lightweight outdoor applications) |
| Needle Detection & Safety | FPD901/FPD902 non-magnetic grades 100% pass 8-level and 10-level garment needle detection (NC-A98); zero false alarms on EAS retail gates |
| Mechanical Temper | Semi-hard (1/2H) / Hard (FH); optimized ductility for high-speed cold heading without cracking or burrs |
| Surface Finish & Color | Bright Polished, Chemical Black, Antique Brass, Golden, Nickel-Plated, Zinc-Plated, or Custom Coated |
| Supply Packaging | • Precision Spool Packing: DIN 200 / DIN 250 plastic spools (15kg – 25kg / spool), precision layer wound, jointless • Continuous Coils: 50kg – 100kg coils wrapped in moisture-proof paper on seaworthy pallets |
| Production MOQ | 500 kg per specification (Trial sample spools available for mold testing) |
| Quality Certification | ISO 9001:2015, IATF 16949, OEKO-TEX Standard 100, GRS Certified |
Standard Y-Teeth Profile Dimensions & Application Guide
| Zipper Size | Typical Wire Head Width | Tooth Pitch Compatibility | Recommended Materials | Primary Garment & Luggage Applications |
|---|---|---|---|---|
| #3 Y-Teeth | 4.4mm – 4.6mm | Standard / High Density | SUS304, FPD901, H65 Brass | Dresses, lightweight jackets, luxury pocket zippers, trousers |
| #4 Y-Teeth | 5.2mm – 5.4mm | Standard | FPD901, FPD726, Aluminum 5052 | Denim jeans, casual wear, medium handbags, boots |
| #5 Y-Teeth | 5.8mm – 6.2mm | Standard / Heavy Duty | SUS304, FPD726, H68 Brass | Heavy denim, leather jackets, travel backpacks, outdoor luggage |
| #8 Y-Teeth | 7.5mm – 8.0mm | Heavy Duty | SUS316, FPD726, Brass | Military gear, industrial workwear, motorcycle suits, heavy bags |

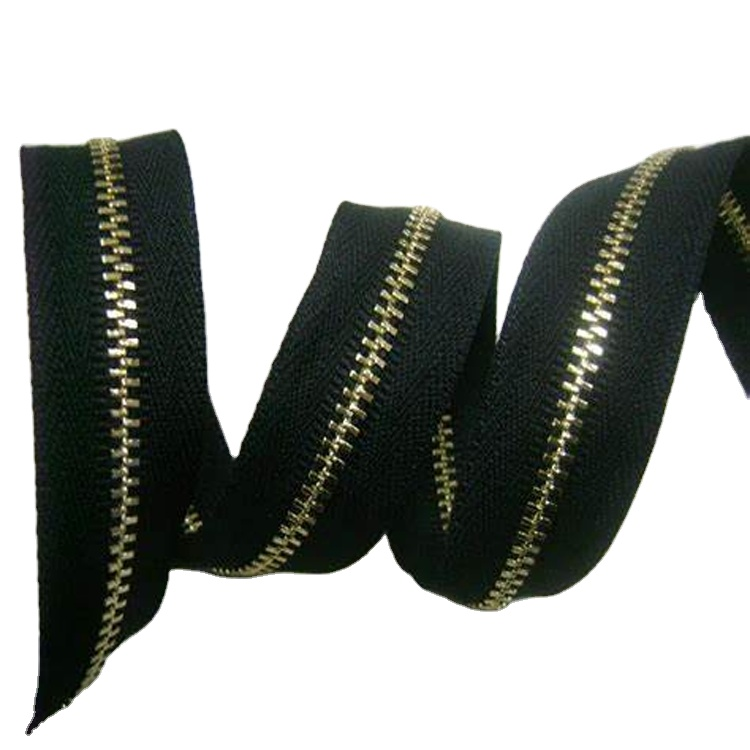

Product Display & Packaging
Why Leading Zipper Manufacturers Choose Fullgreat
- Tight Dimensional Consistency: Wire shape and dimensions are strictly laser-gauged to ±0.01mm, eliminating die jams and high-speed punch breakage.
- Superior Meshing & Pull Strength: Calibrated ductility ensures smooth zipper slider glides with high lateral cross-pull strength, compliant with ASTM D2061 zipper testing standards.
- Proprietary Cost-Saving Alloys: Exclusive FPD901/FPD902 stainless and FPD726 composite copper formulations replace expensive solid brass while maintaining high aesthetic and anti-magnetic performance.
- Tangle-Free Continuous Spooling: Precision layer wound on standard DIN spools with jointless length, allowing continuous high-speed factory operation.
Y-Teeth Zipper Wire FAQ
1. What tooth sizes do you offer for Y-teeth zipper wire?
We supply standard commercial #3, #4, #5, and #8 profiles. Custom cross-sections, head profiles, and groove dimensions can be custom-drawn to match your existing zipper punching tooling.
2. How does your non-magnetic zipper wire perform in garment needle detection?
Our FPD901 and FPD902 austenitic stainless steel grades undergo full solution annealing to completely suppress martensite transformation. They pass 8-level to 10-level Japanese NC-A98 needle detector calibrations without triggering false alarms.
3. What is the advantage of FPD726 composite copper zipper wire?
FPD726 features an outer copper/brass metallurgical layer bonded over an austenitic stainless steel core. It delivers the genuine warm visual finish of traditional brass zippers while providing superior structural tensile strength and saving 30%–40% in raw material cost.
4. What packaging options are available for automated production?
We provide DIN 200 and DIN 250 precision layer-wound plastic spools (15kg–25kg/spool) that ensure tangle-free feeding at up to 1,500 teeth/minute. Continuous jointless coils (50kg–100kg) are also available.
5. What is the MOQ and sample lead time?
Our standard production MOQ is 500 kg per specification. Trial sample spools (15kg–25kg) for tooling calibration and test-running on your punching machines can be dispatched within 3–5 working days.
📩 Request a Factory Quotation & Sample Spool
Contact our precision profile wire engineering team with your required tooth size (#3, #4, #5) and material grade. We provide CAD cross-section confirmations and trial spools within 24 hours.
