Introduction to Copper Strip for Transformer Winding
Why material selection matters for transformer performance
Choosing the right copper strip material is critical to achieving optimal transformer efficiency, durability, and safety. Copper’s excellent electrical conductivity ensures minimal energy loss during current flow, while its thermal conductivity supports effective heat dissipation. Using high-quality copper strips tailored for transformer winding prevents issues such as overheating, mechanical failure, and reduced lifespan. The material’s consistency in purity and dimensional precision directly impacts winding performance, making proper selection essential for reliable transformer operation.
Overview of C1100 and C1020 copper grades
Two leading copper grades for transformer applications are C1100 and C1020, each offering distinct properties. C1100, also known as electrolytic tough pitch (ETP) copper, boasts high electrical conductivity and is widely used where excellent conductivity and cost efficiency are required. C1020, an oxygen-free high-conductivity copper, provides superior purity with reduced oxygen content, making it ideal for demanding electrical environments requiring enhanced mechanical and thermal properties. Both grades meet industry standards and serve vital roles in transformer winding manufacturing based on specific application needs.
C1100 Copper Strip: Properties and Characteristics
Chemical composition of C11000 (electrolytic tough pitch copper)
C11000 copper strip, also known as electrolytic tough pitch (ETP) copper, consists primarily of 99.9% pure copper with a small amount of oxygen (approximately 0.02% to 0.05%). This controlled oxygen content enhances electrical conductivity and mechanical strength without compromising workability. The minimal impurities ensure consistent performance for demanding electrical applications, making it a widely chosen material in the industry.
Electrical conductivity and thermal performance
C11000 copper strip is renowned for its excellent electrical conductivity, typically reaching 99.9% IACS (International Annealed Copper Standard). This high conductivity ensures minimal power loss and efficient current flow, essential for transformer windings and electrical contacts. In addition, its superior thermal conductivity allows effective heat dissipation, maintaining stable operation and preventing overheating in transformer coils and busbars.
Typical applications in transformer and busbar
Thanks to its purity and conductive properties, C1100 copper strip is ideal for manufacturing transformer windings, electrical conductors, and busbars. Its precise thickness and width tolerances enable seamless integration in winding machines and busbar fabrication, supporting reliable, long-lasting electrical connections. The strip’s balance of conductivity, strength, and formability makes it a trusted choice for power transformers, electrical switchgear, and industrial electrical components.
For related metal profiles used in similar electrical applications, explore our detailed guide on brass strip sizes and custom cut options available from factory-direct supply.
C1020 Copper Strip: Properties and Characteristics
Chemical composition of C10200 (oxygen-free copper)
C10200 copper strip, known as oxygen-free copper, features a purity level of 99.95% or higher, with oxygen content kept below 0.001%. This ultra-high purity minimizes impurities that could affect electrical and thermal performance. The main elements are copper, with trace amounts of silver and other elements kept to an absolute minimum to maintain its oxygen-free quality.
Advantages of oxygen-free copper for high-demand applications
Oxygen-free C10200 copper offers superior electrical and thermal conductivity compared to standard electrolytic copper. Its low oxygen content improves ductility, corrosion resistance, and weldability, making it ideal for sensitive electrical components. This grade exhibits fewer gas pores during manufacturing, resulting in enhanced reliability and longevity in demanding environments.
Typical applications requiring C1020 strip
C1020 copper strip is commonly used in highly specialized transformer windings, aerospace electrical systems, vacuum devices, and high-frequency connectors that demand exceptional purity and consistent conductivity. It is preferred where resistance to oxidation and improved mechanical performance under stress are critical. For precise, high-purity electrical solutions, C10200 oxygen-free copper strips from trusted manufacturers fulfill stringent requirements.
C1100 vs C1020: Which Copper Strip is Right for Your Transformer?
Conductivity comparison: IACS values and real-world impact
C1100 copper strip, also known as electrolytic tough pitch copper, offers about 100% IACS conductivity, making it extremely efficient for transformer windings and electrical applications. In contrast, C1020 oxygen-free copper has slightly lower conductivity, typically around 101% IACS, due to its purity and absence of oxygen.
While the difference seems small on paper, in real-world transformer performance, C1100’s conductivity is sufficient for most power and distribution transformers. The marginal conductivity gain of C1020 mainly benefits highly specialized or sensitive electrical equipment.
| Grade | Approximate Conductivity (IACS) | Real-World Benefit |
|---|---|---|
| C1100 | 100% | Efficient power transmission, standard use |
| C1020 | ~101% | Slightly better for ultra-precise or RF applications |
Cost considerations: balancing performance and budget
C1100 copper strip tends to be more cost-effective than C1020. Its widespread manufacturing process and availability keep prices competitive, making it a popular choice for large-scale transformer production.
C1020 oxygen-free copper incurs higher costs due to more complex refining, stricter quality controls, and lower production volumes. For projects where budget is critical, C1100 delivers a strong balance of price and electrical performance.
Choosing between them depends on whether your application demands the slight conductivity edge of C1020 or favors the cost savings and robust reliability of C1100.
Forming and welding differences between the two grades
C1100 copper strip generally offers better formability thanks to its oxygen content, making it easier to bend and shape without cracking—a key advantage in transformer coil winding operations.
Conversely, C1020’s oxygen-free composition makes it more challenging to form and weld, requiring precision control and often more expensive welding techniques. However, this purity ensures higher corrosion resistance and better integrity where environmental or operational stresses are extreme.
| Property | C1100 Copper Strip | C1020 Copper Strip |
|---|---|---|
| Formability | Excellent, flexible for winding | Good but requires care |
| Weldability | Easier with standard methods | Requires special welding process |
| Corrosion resistance | Standard | Superior |
For most transformer manufacturing, C1100 copper strip provides a reliable and cost-efficient solution with good conductivity and ease of processing. C1020 is reserved for niche applications demanding the highest purity and specialized fabrication techniques.
Key Specifications to Confirm When Ordering Copper Strip for Transformer
Thickness, width, and tolerance requirements
Transformer copper strips require precise dimensions to ensure proper winding and electrical performance. Commonly, thickness and width are customized based on the coil design. Tight tolerances, often within ±0.01mm, are critical to avoid fitment issues and maintain consistent electrical resistance. Burr-free and clean edges from precision slitting help prevent insulation damage and short circuits.
| Specification Parameter | Importance | Typical Control |
|---|---|---|
| Thickness | Affects winding density and resistance | Custom, tightly controlled ±0.01mm |
| Width | Must fit coil slot without excess clearance | Custom, narrow tolerance |
| Tolerance | Ensures dimensional consistency | High precision slitting |
Hardness and temper selection for winding operations
Hardness and temper impact the strip’s flexibility during winding and its resistance to fatigue. Soft or annealed tempers (e.g., O or H00) are commonly preferred for ease of bending and shaping without cracking. Harder tempers may improve mechanical strength but reduce formability. Choosing the right temper balances durability with winding efficiency for transformers.
- Annealed (soft): High ductility, easy to form
- Half-hard: Moderate formability with added strength
- Full-hard: High strength, limited bending suitability
Mill Test Certificate (MTC) and traceability
Reliable copper strip suppliers provide a Mill Test Certificate (MTC) with each shipment. This document certifies chemical composition, mechanical properties, dimensional compliance, and conductivity standards. Traceability through the MTC is essential for meeting industry requirements and quality control protocols, ensuring you receive consistent, certified copper suitable for critical transformer applications.
Fullgreat Metal supports traceable, ISO-certified production with MTCs to back every batch of C1100 copper strip, guaranteeing authenticity and performance compliance.
This attention to specs guarantees your copper strip aligns perfectly with transformer design and operational expectations.
Why Fullgreat Metal is a Trusted Copper Strip Supplier

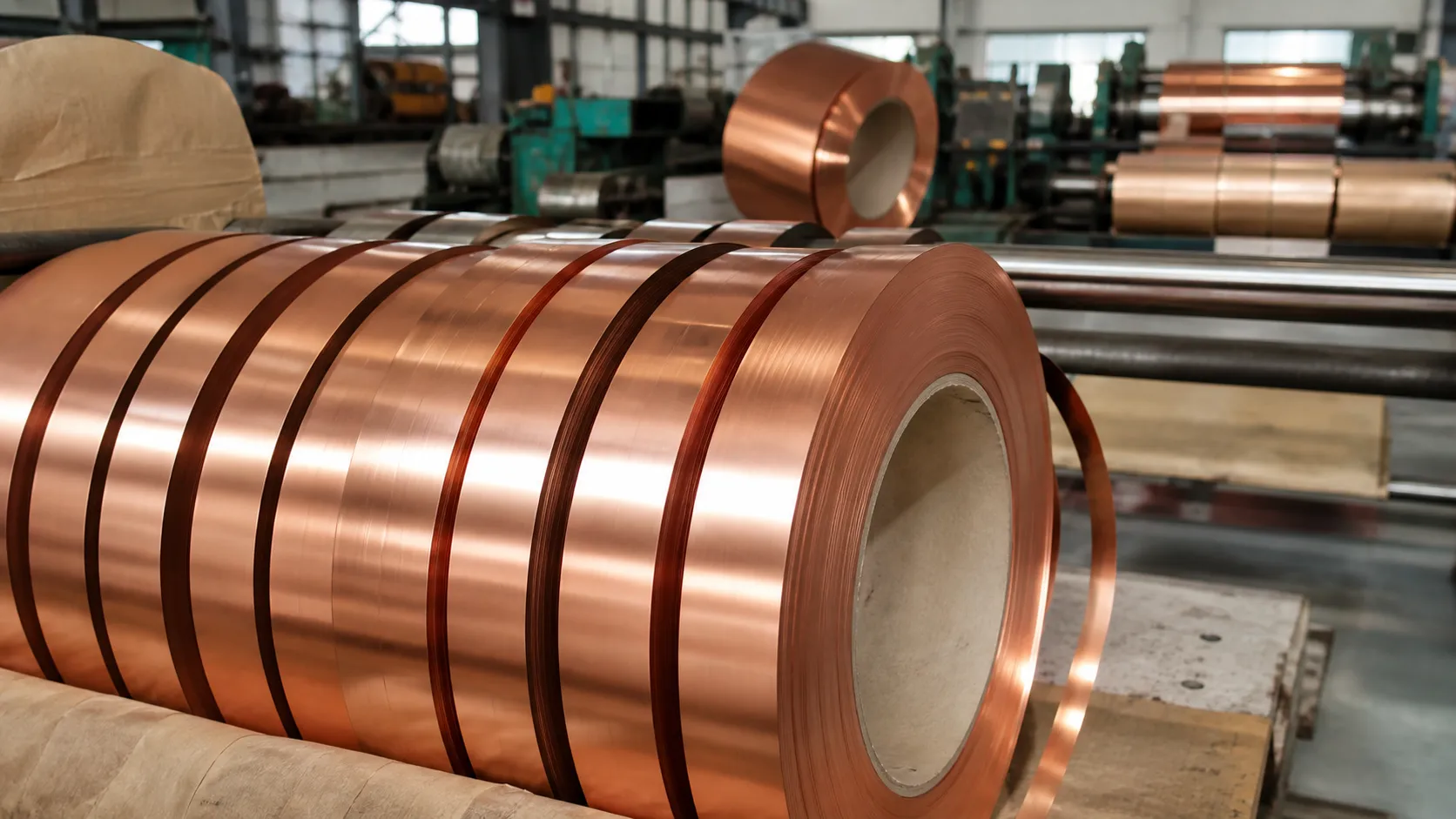

Factory-direct supply with custom slitting support
At Fullgreat Metal, we offer factory-direct supply of high-purity copper strips, including the C1100 copper strip for transformer applications. By manufacturing and delivering products directly from our southern China facility, we eliminate intermediary costs, ensuring competitive pricing without compromising quality. Our advanced processing lines provide precision slitting to meet custom width and thickness requirements closely aligned to your transformer winding needs. This flexibility supports optimized material use and better fit for coil manufacturing. Additionally, we accommodate special surface finishes, tension leveling, and custom packaging options, all tailored to exact customer specifications.
Quality assurance and ISO-certified production
Quality is non-negotiable for transformer copper strips, and Fullgreat Metal enforces strict quality control protocols backed by ISO 9001 and ISO/TS16949 certifications. Our facility uses more than 100 sets of imported equipment for processing and testing to maintain consistent chemical composition, dimensional tolerances within ±0.01mm, and superior electrical conductivity guaranteed in every batch. Each shipment includes a complete Mill Test Certificate (MTC) for traceability, assuring clients that every C1100 copper strip meets international standards ASTM B152 and JIS H3100 essential for transformer reliability. This rigorous quality assurance makes Fullgreat Metal a trusted partner for manufacturers demanding precision and durability in copper strip supply.
For specialized metal needs, Fullgreat also provides a broad range of precision slitting services with quality certificates to support diverse industrial requirements.
Conclusion: Choosing the Right Copper Strip for Your Transformer Application
Selecting the appropriate copper strip grade is critical for optimizing transformer performance and longevity. C1100 copper strips offer excellent electrical conductivity and cost efficiency, making them a reliable choice for most standard transformer winding and busbar uses. In contrast, C1020 oxygen-free copper delivers superior purity and enhanced performance for specialized, high-demand electrical applications where minimal oxygen content and exceptional thermal properties are required.
Understanding your specific project requirements such as conductivity, mechanical forming, welding needs, and budget constraints will guide the optimal choice between these grades. Precision in thickness, width, hardness, and full documentation through Mill Test Certificates ensure traceability and quality assurance critical to transformer manufacturing.
As a trusted supplier, Fullgreat Metal provides factory-direct access to ISO-certified C1100 copper strips with customizable specifications and tight tolerances, supporting the exact demands of transformer applications across global markets. This combination of high-quality materials, flexible customization, and reliable certification empowers manufacturers to confidently meet stringent electrical and mechanical standards in their transformer production.
